U.FL calibration kit and test board

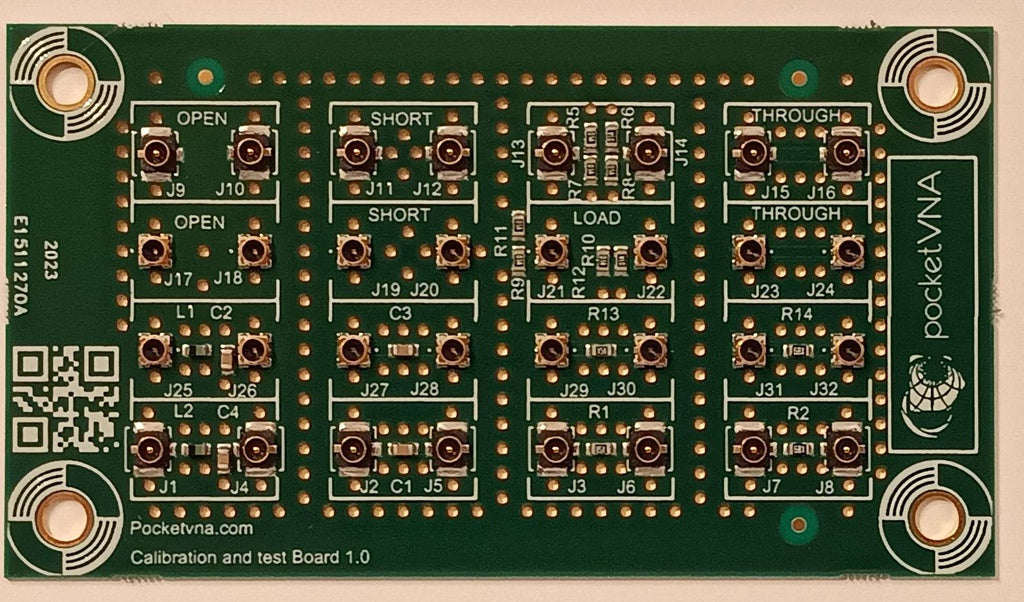

pocketVNA Calibration and Test Board 1.0

Compact calibration and test board for U.FL-based RF measurements. The board provides two independent U.FL 2-port calibration kits:

• U.FL female connector, TE Connectivity 2337019-1
• Hirose MS-156C subminiature coaxial switch, 1.35 mm height

Features

• Simultaneous 2-port calibration with open, short, and load standards available twice on the board
• Supports standard U.FL connectors and Hirose MS-156C coaxial switches
• High-quality Rogers ceramic substrate
• Version 1.0 beta — feedback and requests for customized calibration kits are welcome

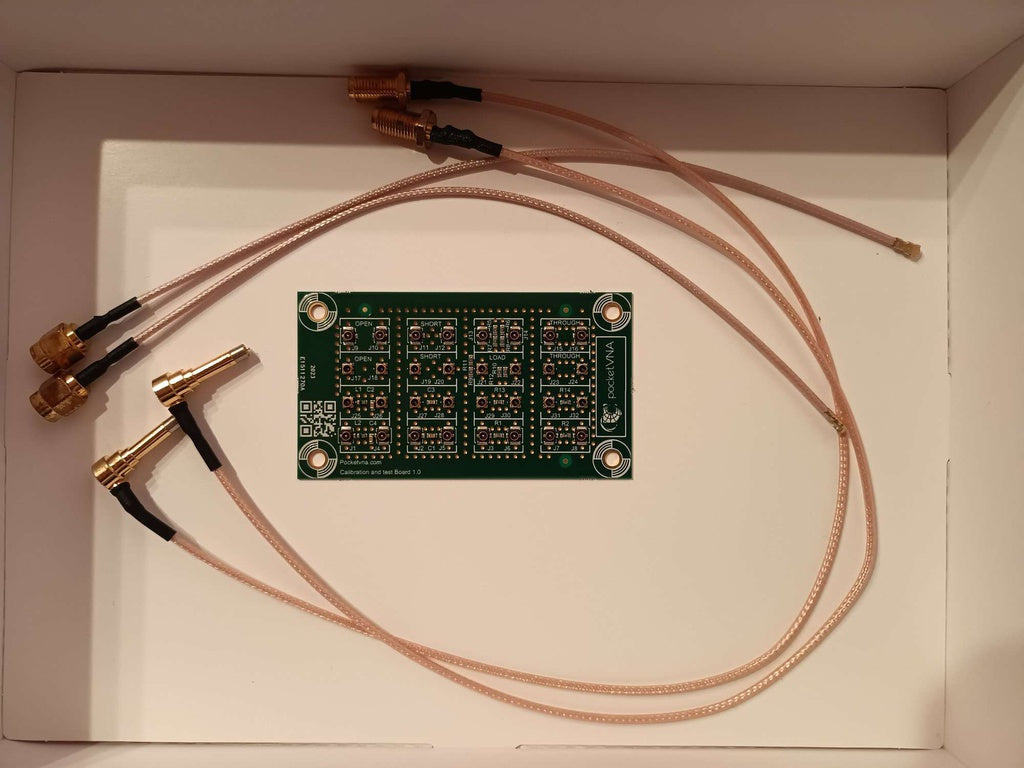

Included

• U.FL calibration PCBA
• Two SMA-to-U.FL cables, rated for 100 mating cycles

Documentation

See documentation here.

Calibration Kit Data

Calibration kit data is available in Touchstone format and vendor-specific formats for R&S, RigExpert, Keysight, and Copper Mountain. Download here

HS code 7318.15.95
